Enabling and Renewing SSL for Self-signed Certificates in ODH 3.4.0 and Later

Enable and renew SSL for self-signed certificates using Ambari. A self-signed certificate is created, signed, and issued by the subject of the certificate.

Note

For ODH versions earlier than 3.4.0, see Enabling and Renewing SSL for Self-signed Certificates in ODH Versions Earlier Than 3.4.0.
Note

Enable/Renew SSL are the same in Big Data Service ODH, and if certificates are expired, the entire set of certificates must be regenerated using the regular SSL enablement process. We recommend creating a notification based on the certificate expiration time. For more information, see Creating an Alarm.
  1. Access Apache Ambari with administrator user and password.
  2. In the Ambari UI, navigate to Views, then SSL Management View.
  3. Select Configure Services.

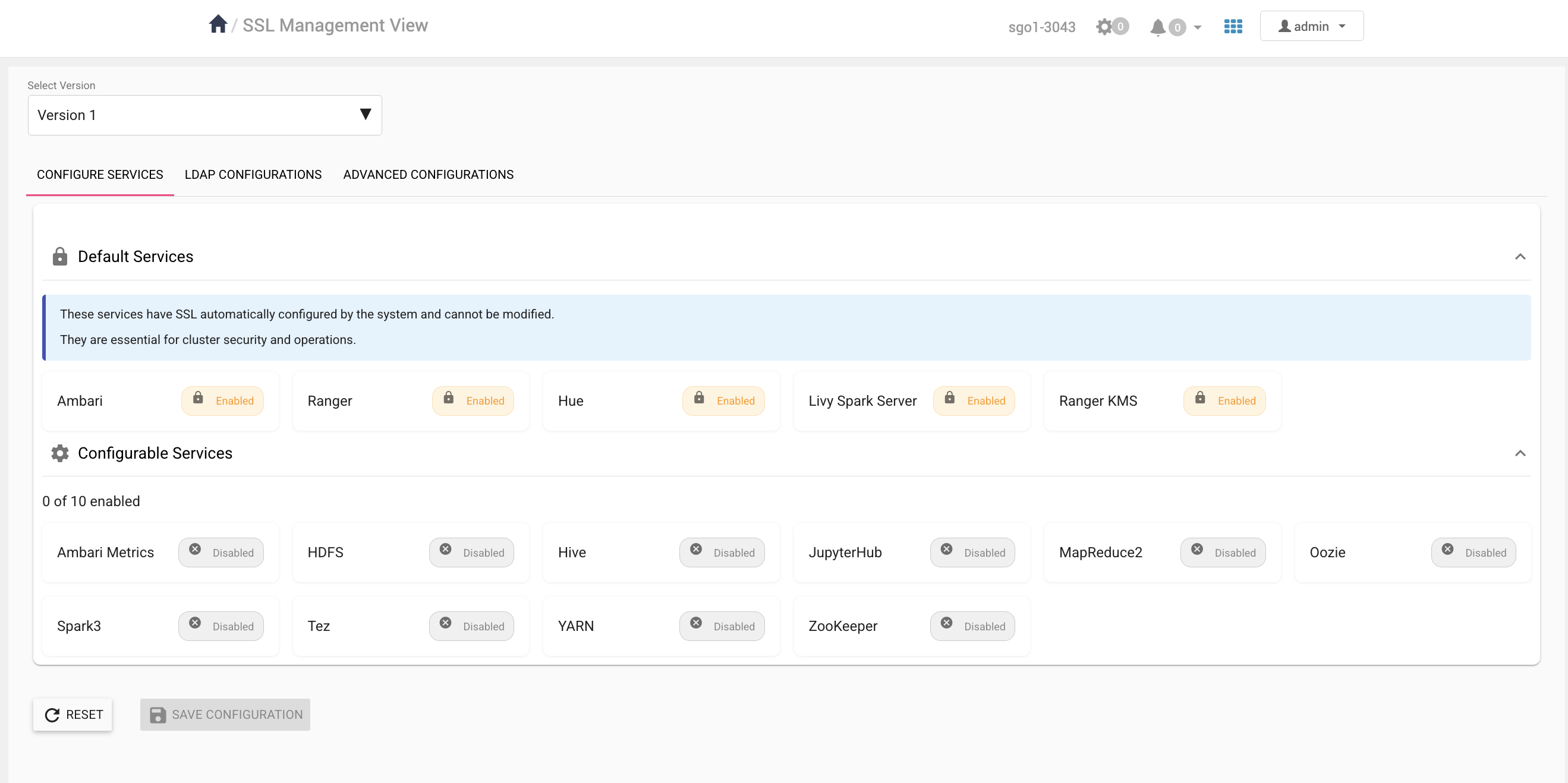

    Configure Services in Ambari UI.
  4. Under Configurable Services, find the service that you want to enable SSL for.
  5. Switch the service from Disabled to Enabled.
  6. Select Save Configuration.
  7. (Optional) To view or update SSL-related configuration properties, select Advanced Configurations.

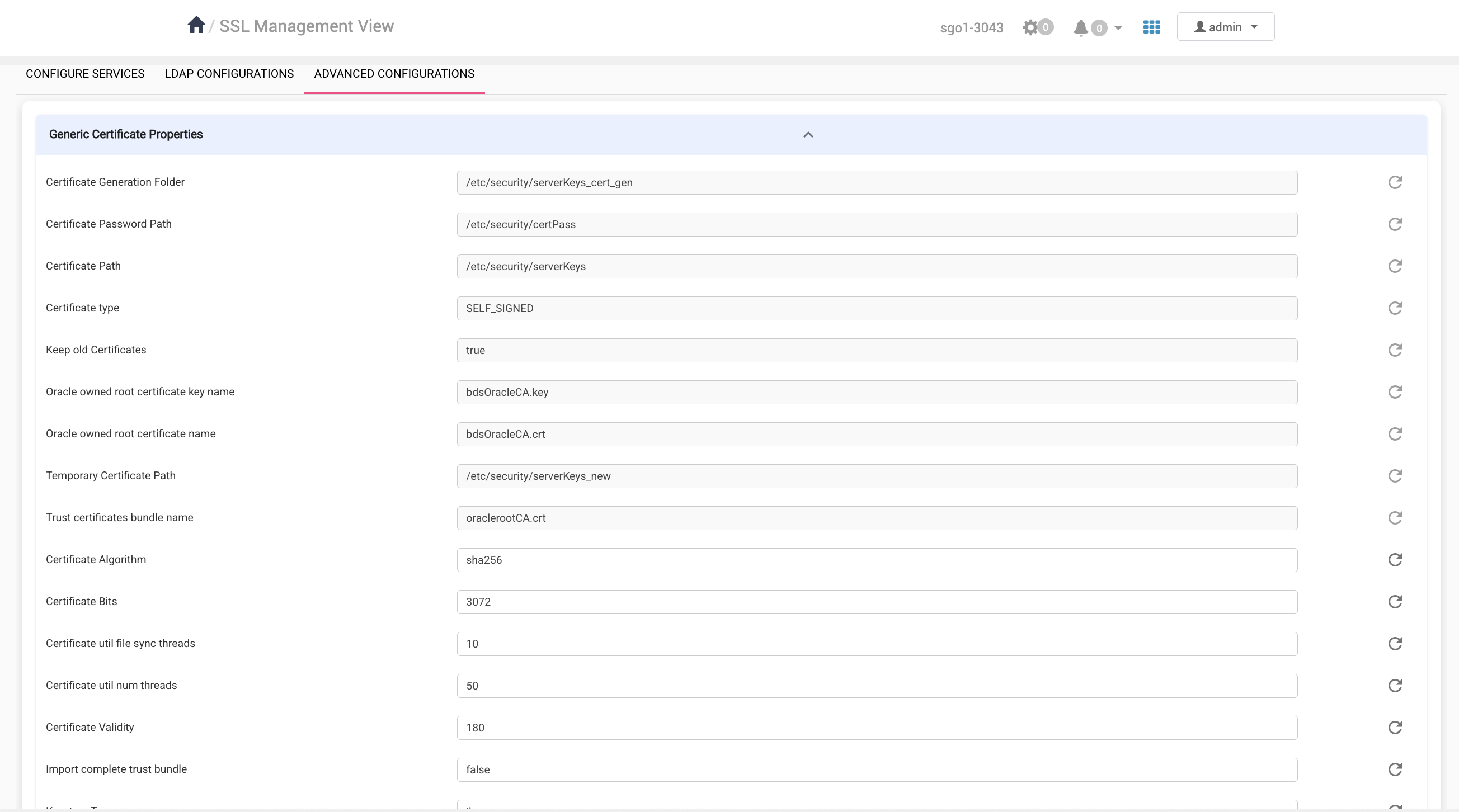

    Advanced Configurations in Ambari UI.
  8. (Optional) To import an LDAP certificate, or to test connectivity, select LDAP Configurations.

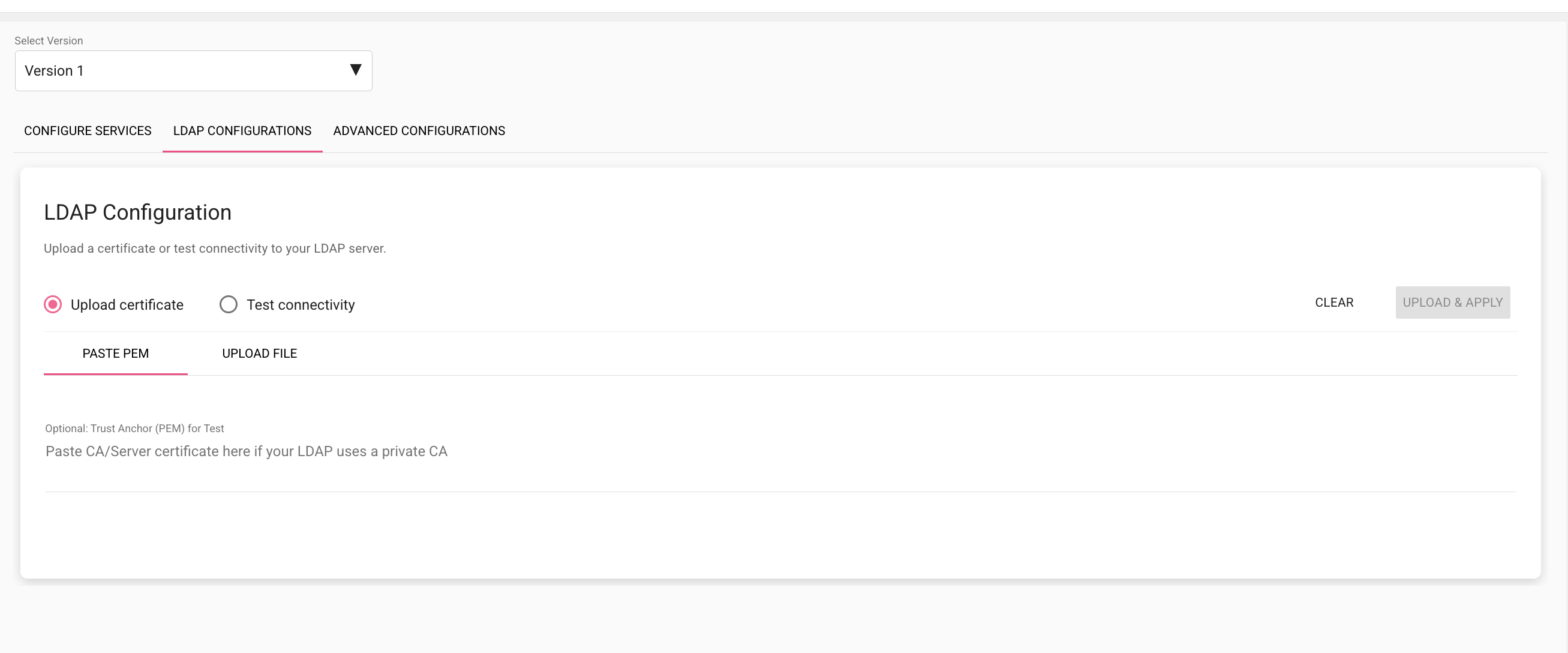

    LDAP Configurations in Ambari UI.

Enabling and Renewing SSL for Self-signed Certificates in ODH Versions Earlier Than 3.4.0

Use the Big Data Service certificate utility to generate self-signed SSL certificates for ODH clusters running versions earlier than 3.4.0.

Note

For ODH 3.4.0 and later, see Enabling and Renewing SSL for Self-signed Certificates in ODH 3.4.0 and Later.
Note

Enable/Renew SSL are the same in Big Data Service ODH, and if certificates are expired, the entire set of certificates must be regenerated using the regular SSL enablement process. We recommend creating a notification based on the certificate expiration time. For more information, see Creating an Alarm.
  1. SSH to the first master node (mn0) of the ODH cluster node as opc user.
  2. Edit /home/opc/cloud/flask-microservice/cert_util/conf/bds-certs.conf.

    Example:

    vi /home/opc/cloud/flask-microservice/cert_util/conf/bds-certs.conf

    Sample file:

    # Copyright (c) 2021, Oracle and/or its affiliates. All rights reserved.
#
[BDS_CERT_CONFIGS]
#This files defines all the SSL certificate related configurations used in BDS cluster
#Whether custom certificate or not
CUSTOM_CERTIFICATE=false
#Recommended SSL services, Mostly all the customer facing UI services
#Allowed values AMBARI,RANGER,HUE,DATASTUDIO,LIVY
DEFAULT_SSL_SERVICES=AMBARI
#Comma separated service names for enabling SSL, These are the additional components from ambari UI to enable/disable SSL.
#Allowed values ZOOKEEPER,AMS,HDFS,YARN,MAPREDUCE,OOZIE,HBASE,SPARK,HIVE,KAFKA,FLINK,REGISTRY
ADDITIONAL_SSL_SERVICES=NONE
#Whether to restart all the required services after certificate deployment
RESTART_REQUIRED_SERVICES=false
#Certificate validity in days. Mostly used for self signed certificates
CERTIFICATE_VALIDITY=180
#Bits to be used for certificate generation. Mostly used for self signed certificates
CERTIFICATE_BITS=3072
#Algorithm to be used for generating self signed certificate
CERTIFICATE_ALGORITHM=sha256
#Default path to store all the certificate, keys and keystore. Same path will be used for hadoop credential store
CERT_PATH=/etc/security/serverKeys
#Temporary certificate directory. Will be used before applying the certificate
TEMP_CERT_PATH=/etc/security/serverKeys_new
#Initital certificate generation path. Used only when generating self signed certificates
CERT_GEN_FOLDER=/etc/security/serverKeys_cert_gen
#Secure password location. This location will be used only during transaction
CERT_PASS_PATH=/etc/security/certPass
#Whether to take backup when doing certificate renewal. Mostly used for self signed certificates
KEEP_OLD_CERTS=true
#Set this flag incase utility used for older cluster. It will update the keystore path along with other properties
LEGACY_CLUSTER=false
#Set Keystore type
KEYSTORE_TYPE=jks

#This is completely owned by oracle. Leave this field unchanged
ORACLE_OWNED_ROOT_CERTIFICATE_NAME=bdsOracleCA.crt
ORACLE_OWNED_ROOT_CERTIFICATE_KEY_NAME=bdsOracleCA.key

#Final trust bundle that contains all the trust certificates.
#Including all public ca root certs, oracle owned root certs and customer specified root certs.
#This will be saved in CERT_PATH. Leave this field untouched
TRUST_CERTS_BUNDLE_NAME=oraclerootCA.crt

#Root Certificate related details
ROOT_CERT_PATH=/etc/security/serverKeys/bdsOracleCA.crt

#Server certificate details
SERVER_CERT_PATH="NONE"
SERVER_CERT_KEY_PATH="NONE"

#Support for LDAPS
LDAP_URL=NONE
    Note

    Root/Issuer certificate of a self signed certificate can be found in the path CERT_PATH with name ORACLE_OWNED_ROOT_CERTIFICATE_NAME in all the nodes of the cluster.
  3. Update the ADDITIONAL_SSL_SERVICES property with the services that you want to enable SSL for. The default value for this property is NONE. The allowed values are AMS, HDFS, YARN, MAPREDUCE, OOZIE, HBASE, SPARK, ZOOKEEPER, HIVE, KAFKA, FLINK, and REGISTRY. We recommend you enable SSL for all required services in one go by using a comma-separated list of the services.
  4. Update LDAP_URL to point to LDAP server URL (applicable for secure LDAP only), if the ODH cluster is integrated with LDAP/AD.

    Example:

    LDAP_URL=ldaps://<myldap.com:636>

    This automatically pulls the required certificates to the ODH truststore.

  5. Update the RESTART_REQUIRED_SERVICES property value to true, if you want this utility to restart the services. The default value for this property is false. If you retain the default value, you need to manually restart all the affected services from Apache Ambari to complete enabling SSL for the cluster.
    Irrespective of the value of this property, few services like Apache Ambari and Datastudio are immediately restarted when you enable certificates using this utility.
  6. Retain the default value true for the KEEP_OLD_CERTS property to keep a backup of the old certificates. Certificate backups are stored at /etc/security/serverKeys-backup-<dateofbackup>.
  7. If the cluster version is 3.0.6 or lower, set the LEGACY_CLUSTER property value as true to update the SSL properties in the cluster. Skip this step if the cluster version is 3.0.7 or later.
  8. Save the changes made to the configuration file.
  9. Run the utility to enable the SSL certificates. If you don't use the ambariPass parameter, you're prompted to enter the Ambari password.
    sudo bds_cert_util --enable --ambariPass ambari-password
    Note

    If the Ambari password contains special character, put password in single quotes.

    Example:

    sudo bds_cert_util --enable --ambariPass '<ambari-password>'
Example:-
## sudo bds_cert_util --enable --ambariPass 'Welcome@879'
    Note

    After the certificate is renewed, be sure the renewed certificates are updated on the system. For example, if Big Data Service certificates are added in any Load Balancer, after renewal, the new root certificate must be updated into the Load Balancer.
  10. Wait for the utility to complete.
  11. Review the utility logs from /bdslogs/bds_cert_util*.log.
  12. After the utility runs successfully, all configured services run on SSL. To verify if the services are enabled for SSL, sign-in to Apache Ambari and select the quicklinks under each of the configured services.
    Note

    After renewing the SSL certificates for the Big Data Service cluster, if the JupyterHub service isn't using the latest certificates, restart JupyterHub service.
    1. Sign-in to the JupyterHub node (use un1 for HA clusters or un0 for non-HA clusters).
    2. Restart the JupyterHub service:
      systemctl restart jupyterhub.service
    3. Verify the status of the JupyterHub service:
      systemctl status jupyterhub.service

      This ensures that the JupyterHub service is using the updated SSL certificates.
