Actionable Insights

You can receive implementable Actionable Insights based on News Reports in a JSON format. These insights can be used to further automate tasks on monitored resources, for example: increase CPU, Memory based on capacity insights, and add queries based on SQL insights information to optimize database query.

Create an Actionable Insight

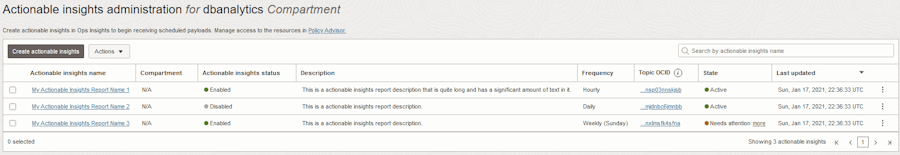

To create Actionable insights, from the Ops Insights menu navigate to Administration and click on Actionable insights. This will load the Actionable Insights administration page.

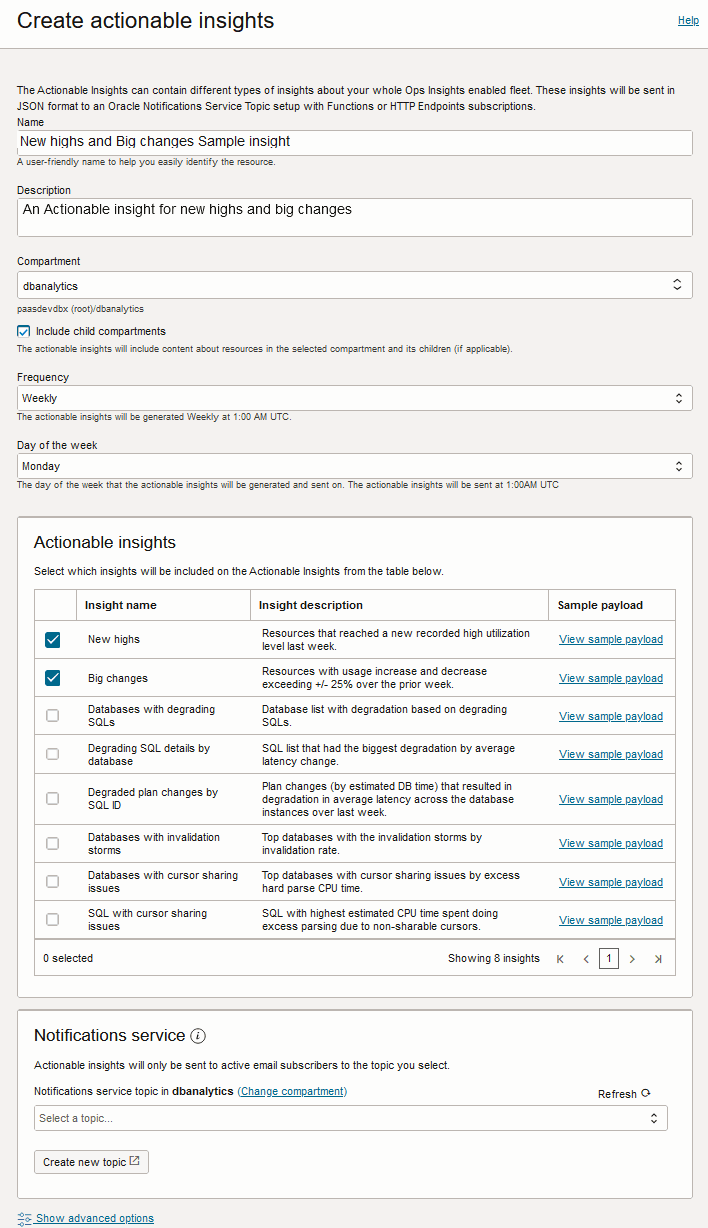

Click on the Create actionable insights button, to open the Create actionable insights slide-out.
Enter a name, description, compartment, select if you need to include child compartments, frequency (hourly, daily, or weekly). For weekly Actionable Insights select the day of the week that the actionable insights will be generated and sent on.

Select the insights you wish to receive:

Daily and weekly Actionable Insights

Insight	Category	Description
New highs	Capacity planning	Resources that reached a new recorded high utilization level last week.
Big changes	Capacity planning	Resources with usage increase and decrease exceeding +/- 25% over the prior week.
Degrading SQL by database	SQL insights	Database list with degradation based on different insights
Degrading SQL details by database	SQL insights	SQL list that had the biggest degradation by average latency change.
Degraded plan changes by SQL Id	SQL insights	Plan changes (by estimated database time) that resulted in degradation in average latency across the database instances over last week.
Databases with invalidation storms	SQL insights	Top databases with the invalidation storms by invalidation rate
Databases with cursor sharing issues	SQL insights	Top databases with cursor sharing issues by excess hard parse CPU time
SQL with cursor sharing issues	SQL insights	Top 50 SQL with cursor sharing issues by excess hard parse CPU time

Hourly Actionable Insights

Insight	Category	Description
Sudden 1-Hour Performance Degradation	SQL insights	Identifies SQL statements that have experienced a significant, sudden drop in performance within the last hour.
Sudden 1-Hour Degradation with Plan Changes	SQL insights	Identifies performance degradation caused by a change in the SQL execution plan.
24-Hour Degradation Trend	SQL insights	Tracks SQL statements that are showing a gradual or consistent degradation in average latency over 24 hours.
High I/O Wait Time	SQL insights	SQL statements that are spending a significant amount of time waiting for I/O operations (disk reads).
High Non-I/O Wait Time	SQL insights	SQL statements experiencing high wait times that are not related to disk I/O. These can include waits for locks, latches, or other concurrency and application-related waits.
Smart Scan I/O Savings	SQL insights	Measures the efficiency of Smart Scan technology on Exadata. Calculation: `smartscanIOSavingsPct = (1 - (io_interconnect_bytes / physical_read_bytes)) * 100`
Smart Scan I/O Actual MB Per Execution	SQL insights	Calculates the actual amount of data (in megabytes) transferred from the storage cells to the database server per execution of the SQL statement. A lower value indicates higher efficiency.
Prioritization Logic	SQL insights	SQLs are ranked by `dbTimeSecs` (total database time consumed). Higher values indicate greater system-wide impact.

Select the appropriate notifications service topic. Alternatively you can create a new topic, by clicking on Create new topic. This will take you to the Create new topic section of Ops Insights.
Once all information has been entered and verified click on Create Actionable insight. The Actionable insight will now be visible in the Actionable insights administration page.

Additional Actions with Actionable Insights

Maintenance is an important activity for all Actionable Insights, the following is a list of maintenance actions that can be done:

Enable/disable an Actionable Insight

From the Administration page, select the Actionable insight you wish to enable or disable.
Click on the Actions menu button and select either Disable or Re-enable.
Click on the Disable or Re-enable button in the confirmation pop-up.

Move a Resource

From the Administration page, select the Actionable insight you wish to move to a different compartment.
Note

Changing an Actionable insight to a different compartment will NOT modify the resources that are in scope of the report. It will only change the report to a new compartment.
Click on the Actions menu button and select the Move resource button.
In the Move resource pop-up, select the new compartment for the Actionable insight resource and click the Move resource button.

Edit an Actionable Insight

To edit an Actionable insight resource, locate the insight to be edited in the administration page, click the vertical ellipses, and the click on Edit Actionable insight.
Perform changes to be made in the slide out menu.
Once all changes have been made click on the Save changes button.

Add Tags

To add tags to an Actionable insight, locate the insight to be edited in the administration page, click the vertical ellipses, and the click on Add tags.
You can Import standard tags by clicking the button, or manually add the standard tags by entering the tag name, key, and value
Once all tags have been added click on the Apply tags button.

Sample Payloads

The following are sample JSON payloads for Actionable insights:

New highs for databases sample:

{
  "newHighsDb": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "resourceValue": 101.0,
      "resourceMetric": "STORAGE",
      "projectedUtilization": 102.0
    }
  ]
}

Big changes for databases sample:

{
  "bigChangesDb": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "resourceValue": 101.0,
      "resourceMetric": "STORAGE",
      "projectedUtilization": 102.0
    }
  ]
}

Degrading SQL by database sample:

{
  "degradingSqlByDb": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "invalidationStormCount": "6",
      "cursorSharingDuplicatesSqlCount": "2",
      "avgDailySqlCount": "104",
      "avgActiveSessions": "8.51",
      "degradingSqlCount": "1",
      "newSqlCount": "23"
    },
     {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko2",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb2",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf2",
      "displayName": "db name 02",
      "invalidationStormCount": "7",
      "cursorSharingDuplicatesSqlCount": "2",
      "avgDailySqlCount": "105",
      "avgActiveSessions": "8.52",
      "degradingSqlCount": "2",
      "newSqlCount": "24"
    }
  ]
}

Database with highest invalidation storm sample:

{
  "databaseWithHighestInvalidationStorms": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "avgDailySqlCount": "222.50",
      "invalidationStormCount": "8",
      "invalidationAvgPct": "59.79",
      "invalidationMaxPct": "74.05"
    }
  ]
}

Most impacted database by cursor sharing duplicates sample:

{
  "mostImpactedDatabaseByCursorSharingDuplicates": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "cursorSharingDuplicatesSqlCount": "33",
      "duplicateSqlMaxCount": "9",
      "duplicateSqlCpuParseSecs": "1.634"
    }
  ]
}

Top SQL by cursor sharing issues sample:

{
  "topSqlByCursorSharingIssues": [
    {
      "opsiId": "ocid1.opsidatabaseinsight.oc1..qazxswed7zr6rfvbgt6yhnmjui6asdf4ikmjuy5xdogv5rfvbgtyhnmjuiko",
      "tenantId": "ocid1.tenancy.oc1..tgbnhyujmj4ato2edcvfr7lbh5a3f46wsxcderf7yhnmju7ikmnj6bs2r6gtr",
      "compartmentId": "ocid1.compartment.oc1..dhrftgyh2qwertyuiopas7yhnbgtrfvc2ujmnhytg5qazxswedcvfrtgb",
      "resourceId": "ocid1.autonomousdatabase.oc1.phx.abwsxcderf7d5sncqtlnfak4eynlmedcvfrtgbnsdwwuhjm5iuytrewqasdf",
      "displayName": "db name 01",
      "sqlId": "0t73f1234u7q9",
      "cpuTimeSecs": "662.731"
    }
  ]
}
